DinghyGo
Orca
Functional Fun
Description
This unique sailboat, motorboat, and rowboat in one is available in 3 different sizes. Complete sailing experience with daggerboard, shrouds, vang, outhaul, and flattening reef, yet simple to rig. Collapsible daggerboard trunk and scupper drain valve keeps the interior of the boat dry.
Choose Your Model

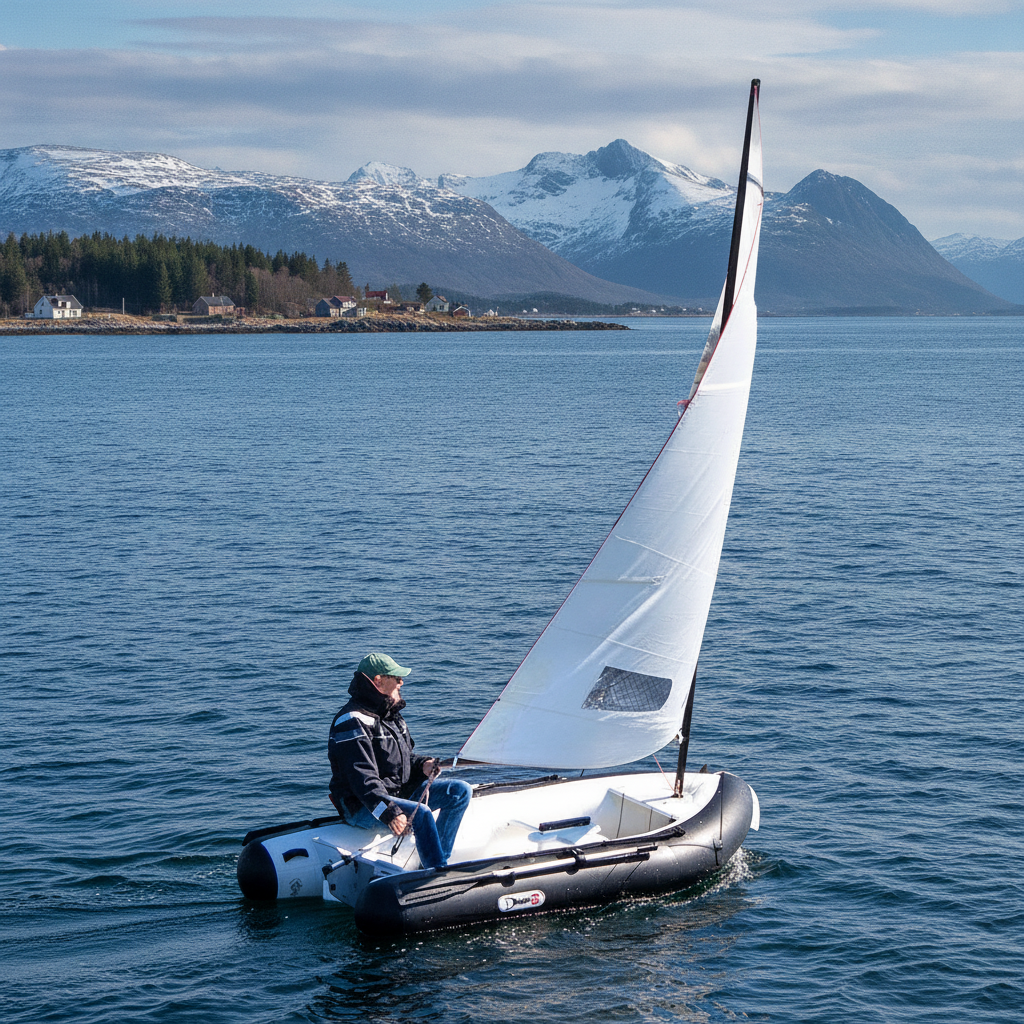

Orca 280
1 Remaining
Length: 280 cm (9.1 ft)
Weight: 41 kg (92 lbs)
Persons: 2 by sail / 4 by motor

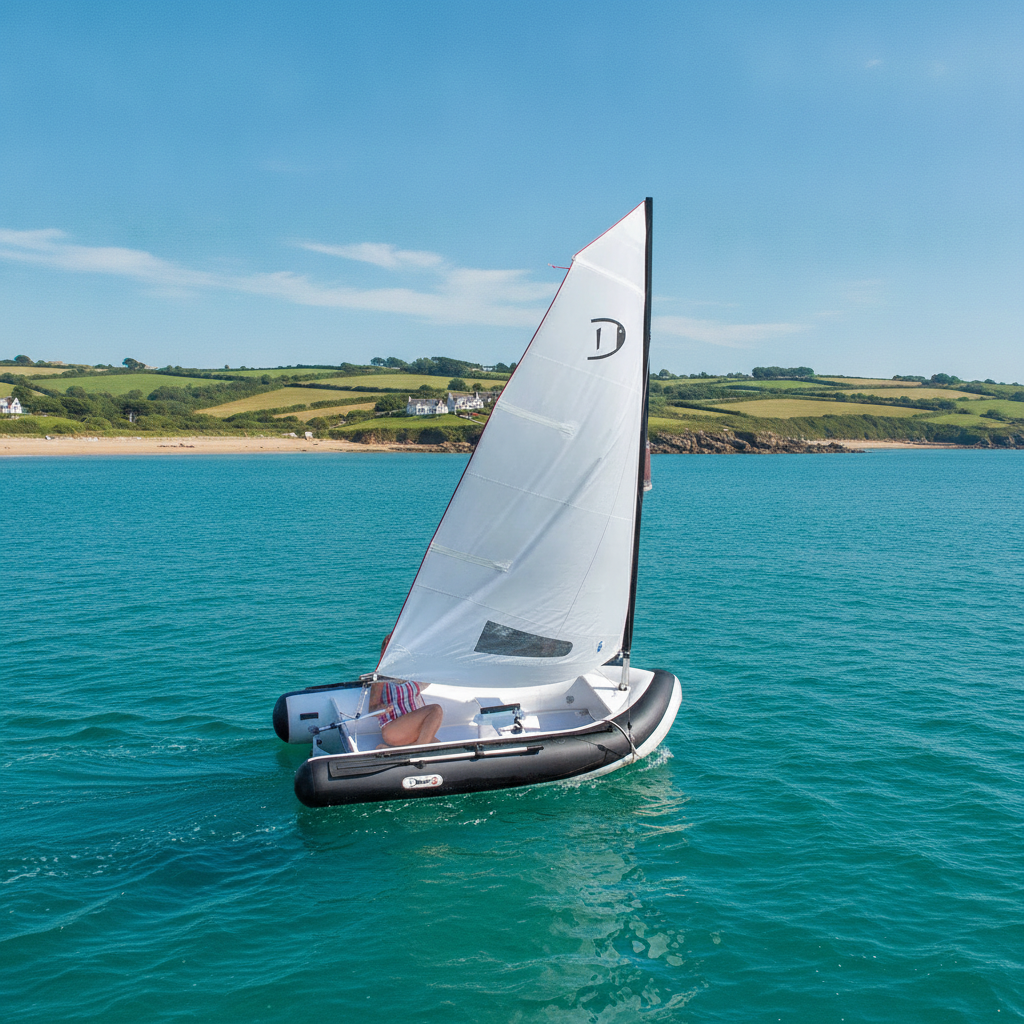

Orca 325
IN-STOCK
Length: 325 cm (10.6 ft)
Weight: 44 kg (97 lbs)
Persons: 2.5 by sail / 5 by motor

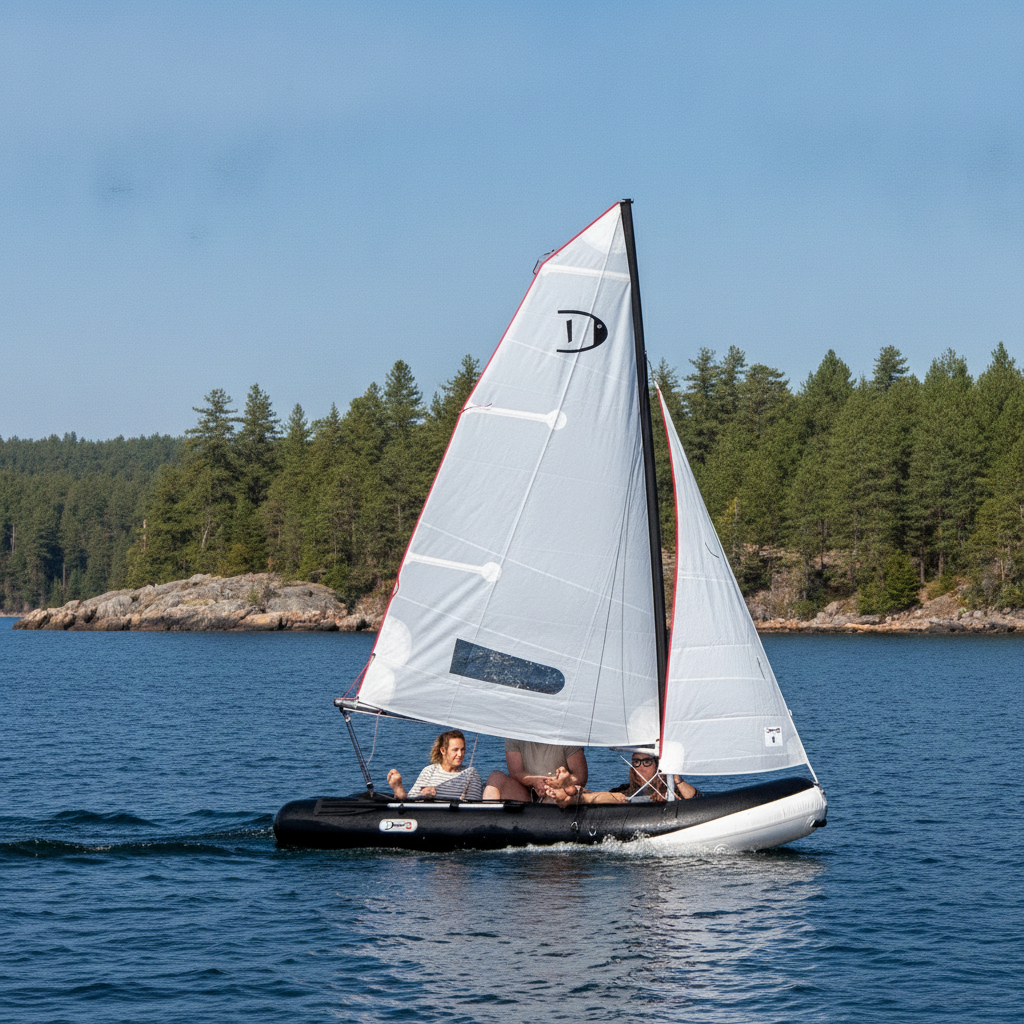

Orca 375
In-Stock
Length: 375 cm (12.3 ft)
Weight: 49 kg (108 lbs)
Persons: 3 by sail / 6 by motor
Recommended Accessories
Optional add-ons. Consider at time of boat purchase…OR later.
DinghyGo Orca 375
Technical Specs
Orca 280
Length - 280cm (9.1 ft)
Weight - 41 kg (92 lb)
Bag - 1.5
Assembly Time - 15 min
Capacity - 500 kg (1100 lb) / designed for 2 adults under sail or 4 under motor
Mast - 430 cm (14.1 ft) 4-piece aluminum alloy
Mainsail - 4.8 m² (52 ft²) white Dacron
Boom - 205 cm (6.6 ft) 2-piece aluminum alloy
Floor - 10.2 psi white single-chamber dropstitch PVC
Tubes - 40 cm (16 in) 3.6 psi black and white thermal-welded Valmex reinforced PVC four-chamber with 6 D-rings for anchor rode or towing
Daggerboard - Fiberglass
Rudder - Fiberglass
Draft - 85 cm (2.6 ft)
Assembled dimensions - 280 x 150 x 430 cm (9.1 x 4.9 x 14.1 ft)
Outboard motor - 4.5 kW (6 HP) max.
Bag dimensions -
#1: 100 x 54 x 32 cm (40 x 21 x 13 in) @ 27 kg (60 lb)
#2: 120 x 45 x 17 cm (47 x 18 x 7 in) @14 kg (32 lb)
Orca 325
Length - 325cm (10.6 ft)
Weight - 44 kg (97 lb)
Bag - 1.5
Assembly Time - 15 min
Capacity - 575 kg (1265 lb) / designed for 2.5 adults under sail or 5 under motor
Mast - 430 cm (14.1 ft) 4-piece aluminum alloy
Mainsail - 5.6 m² (60 ft²) white Dacron
Boom - 225 cm (7.3 ft) 2-piece aluminum alloy
Floor - 10.2 psi white single-chamber dropstitch PVC
Tubes - 40 cm (16 in) 3.6 psi black and white thermal-welded Valmex reinforced PVC four-chamber with 6 D-rings for anchor rode or towing
Daggerboard - Fiberglass
Rudder - Fiberglass
Draft - 85 cm (2.6 ft)
Assembled dimensions - 325 x 150 x 430 cm (10.6 x 4.9 x 14.1 ft)
Outboard motor - 4.5 kW (6 HP) max.
Bag dimensions -
#1: 100 x 72 x 32 cm (40 x 28 x 13 in) @ 29 kg (64 lb)
#2: 120 x 45 x 17 cm (47 x 18 x 7 in) @15 kg (33 lb)
Orca 375
Length - 375cm (12.3 ft)
Weight - 49 kg (108 lb)
Bag - 1.5
Assembly Time - 20 min
Capacity - 950 kg (1430 lb) / designed for 3 adults under sail or 6 under motor
Mast - 430 cm (14.1 ft) 4-piece aluminum alloy
Mainsail - 4.8 m² (52 ft²) white Dacron
Jibsail - 1.1 m² (12 ft²) white Dacron
Boom - 225 cm (7.3 ft) 2-piece aluminum alloy
Floor - 10.2 psi white single-chamber dropstitch PVC
Tubes - 3.6 psi black and white thermal-welded Valmex reinforced PVC four-chamber with 6 D-rings for anchor rode or towing
Daggerboard - Fiberglass
Rudder - Fiberglass
Draft - 85 cm (2.6 ft)
Assembled dimensions - 375 x 150 x 430 cm (12.3 x 4.9 x 14.1 ft)
Outboard motor - 4.5 kW (6 HP) max.
Bag dimensions -
#1: 100 x 72 x 38 cm (40 x 28 x 15 in) @ 32 kg (71 lb)
#2: 120 x 45 x 17 cm (47 x 18 x 7 in) @17 kg (37 lb)
Contents
Boat
hull
hand pump
bag for hull
repair kit
Sail/row kit
thwart
oars (2)
mast step
daggerboard
kick-up rudder
mast (4 pieces)
boom (2 pieces)
mainsail (w/ 3 battens)
jib sail (Orca 375-only)
blocks & lines
bag for sail/row kit
